• Main Frequency

  150MHz

• Kernel Architecture

  Single Core

• IEEE754 Single-Precision Floating Point Unit (FPU)

  Have

• Trigonometric Function Gas Pedal（TMU）

  -

• Module On Complex Mathematics（VCU-I）

  -

• CLA

  -

• CLB

  -

• Instruction Storage IRAM

  256KB

• Data Storage DRAM

  256KB

• Meticulously FLASH

  1MB

• DMA

  6

• System Peripherals

  -

• 32-Bit CPU Timer

  3

• Window Watchdog Timer

  1

• GPIO

  88

• AGPIO

  -

• ADC resolution (bit)

  12

• Number ADC Number

  3

• SamplingG Rate

  5M

• Number Of Channels ADC Input / Ch.

  8

• CMPSS

  -

• DAC

  -

• 12bit DAC

  -

• PGA

  -

• Programmable Gain Amplifier Amplification

  -

• PMBus

  -

• I2C

  1

• CAN FD (CAN2.0 Compatible)

  2

• SPI

  4

• SCI (uart compatible)

  4

• LIN (supports switching to uart mode)

  -

• FSI

  -

• 16bit/32bit EMIF

  -

• USB2.0

  -

• EtherCat

  -

• EPWM Channel

  12

• HRPWM

  8

• HHRPWM

  -

• eCAP

  5

• HRCAP

  2

• eQEP

  2

• SDFM

  -

• Operating temperature range (°C)

  -40℃~125℃

• Package Type

  LQFP176、eLQFP 176、BGA 176

• Package Size / mm*mm

  -

• Typology

  Low Power Consumption

• Availability

  Filling

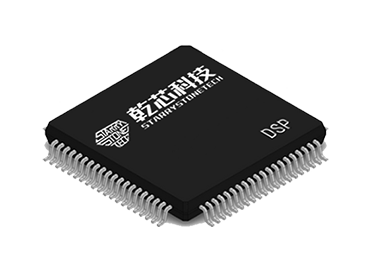

The QXS320F28335 is a 32-bit processor benchmarked against TI's TMS320F2833x family, targeting real-time control applications such as industrial motor drives, photovoltaic inverters and digital power supplies, motor control for electric vehicles, and air conditioning inverters.

The QXS320F28335 has a self-developed 32-bit CPU core benchmarked against the TI C28x, providing 150MHz of processing power.

QXS320F28335 also integrated FPU, can provide 32-bit floating point accelerated instructions.

The QXS320F28335 integrates high-performance analog peripherals and enhanced control peripherals, and two 12-bit ADCs with a 5MSPS sample rate accurately and efficiently manage multiple analog signals, ultimately increasing system throughput. Advanced control peripherals (with frequency-independent ePWM/HRPWM and eCAP) provide excellent control of the system. Connectivity is supported through a variety of industry-common communication ports such as SPI, SCI, I2C, and CAN, and multiple multiplexing options are available for excellent signal placement in a variety of applications. The Embedded Real-Time Analysis and Diagnostics (ERAD) module enhances device debugging and system analysis by providing additional hardware breakpoints and counters for analysis.

The QXS320F28335 supports up to 256KB of instruction RAM, 256KB of data RAM, and 1MB of Flash memory to accommodate most embedded scenarios.

The QXS320F28335 also supports 8KB of bootloader instruction RAM for flexible configuration of the boot process.
